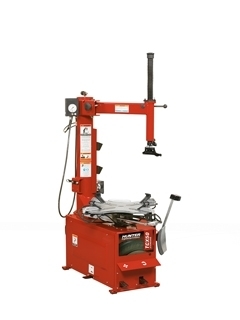

TCX50 Standard Tire Changer, Electric Motor
Item Number: HUNTCX50E


log in for dealer pricing.




NOT APPROVED for GM warranty work.

Description

TCX50 Standard Tire Changer, Electric Motor.

Features

  • Heavyweight
    • Heaviest model in its class
    • Long service life
  • Class-Leading Rigidity
    • Rigid chassis reduces damage risk and operator effort
  • Easy-to-Use Adjustable Tabletop
    • Built-in adjustment system provides 10- to 26- in. clamping range
    • All jaws adjust simultaneously for mistake-free clamping
    • Polished tabletop for easy cleanup
    • Hi-grip jaw covers add mounting torque and protect wheels
    • Diameter marks aid external clamping
  • More Torque, More Speed
    • More Torque
      • Unique 110V or 220V motor generates more torque than popular air or electric models.
    • Faster
      • Faster than popular alternatives- increases productivity
      • Electric tabletop doesn't slow down under load like air motors
  • PowerOut Bead Loosener
    • Most powerful bead breaker in its class
    • Fingertip control eases service of large assemblies
    • Three-way adjustable for best rim fit
    • Shovel protectors standard

Includes

  • Polymer mount head
  • Standard bead lever
  • Bead lever protectors (polymer)
  • Shovel protectors (polymer)
  • Clamping jaw protectors (polymer)
  • Inflation system
  • Two storage pockets

Accessories

  • HUN2028331- Bead Press Arm (Standard on TCX51) optional
  • HUN2028341- Bead Press System (Standard on TCX53) optional

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

  •


Product Specification

Electrical Requirements(110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1 ph, NEMA L6-20P
Air pressure operating range110-145 psi
Air Volume of Inflation Tank4.75 gallons
Wheel Clamping (nominal) External clamping (min-max)10 in. - 26 in.
Wheel Clamping (nominal) Internal clamping (min-max)12 in. - 28 in.
Table rotation speed Electronic motor10 CW / 10 CCW
Maximum Tire Diameter46 in.
Maximum Tire Width14 in.
Bead Loosener Width16 in.
Noise Level74 dB
Machine weight630 lbs.

.
