Item Detail

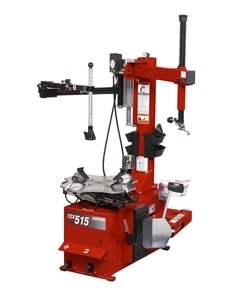

TCX51 Tire Changer, Electric
Item Number: HUNTCX51E


log in for dealer pricing.




NOT APPROVED for GM warranty work.

Description

TCX51 Professional Electric Tire Changer.

Features

  • Heavyweight
    • Heaviest model in its class
    • Long service life
  • Easy-to-Use Adjustable Tabletop
    • Built-in adjustment system provides 10- to 26-in. clamping range
    • All jaws adjust simultaneously for mistake-free clamping
    • Polished tabletop for easy clean
    • Hi-grip jaw covers add mounting torque and protect wheels
    • Diameter marks aid external clamping
  • Class-Leading Rigidity
    • Rigid chassis reduces damage risk and operator effort
  • Conventional Configuration
    • Polymer head for mounting and demounting
    • Steel head with polymer insert for wheel protection
  • More Torque, More Speed
    • More Torque - Unique 110V or 220V motor generates more torque than popular air or electric models.
    • Faster than popular alternatives- increases productivity
    • Electric tabletop doesn't slow down under load like air motors
  • PowerOut Bead Loosener
    • Most powerful bead breaker in its class
    • Fingertip control eases service of large assemblies
    • Three-way adjustable for best rim fit
    • Shovel protectors standard
  • Bead press arm
    • Eases clamping, demounting and mounting difficult combinations.
    • Large diameter cylinder is most powerful in its class
    • Press arm pushes tire into drop center for mounting and demounting operations
    • Lifting hook aids the demounting of heavy tires
    • Press cone aids clamping on stiff tires

Includes

  • Bead press arm and cone
  • Steel mount head with polymer inserts
  • Standard bead lever
  • Bead lever protectors (polymer)
  • Shovel protectors (polymer)
  • Hi-grip jaw protectors (polymer)
  • Inflation system
  • Four storage pockets

Accessories

  • HUN2020451 Wheel Lift - eases servicing of large assemblies. Allows for more careful handling of expensive wheels.
  • HUN2028851 Storage Shelf- offers convenient storage for your most used tools and accessories.

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.



Product Specification

Electrical Requirements(110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1ph, NEMA L6-20P
Air pressure operating range110-145 psi
Air Volume of Inflation Tank4.75 gallons
Wheel Clampimg (nominal) External clamping (min-max)10in. to 26in.
Wheel Clamping (nominal) Internal clamping (min-max)12in. to 28in.
Table rotation speed Electronic motor10CW/ 10CCW
Maximum Tire Diameter46 in.
Maximum Tire Width14 in.
Bead Loosener Width16 in.
Noise Level74 dB
Machine weight760 lbs.

. .
