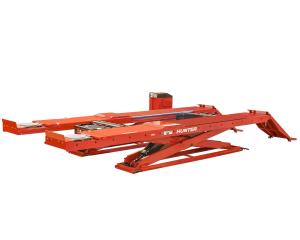

14,000 lb. Surface Mount Scissor Lift, Stainless Turnplates - Red
Item Number: HUNRX14KL
Supplier: HUNTER ENGINEERING COMPANY


log in for dealer pricing.




Description

14,000 lb. capacity Surface Mount Scissor Lift includes Stainless Turnplates, Red


Features

  • Large capacity with a small footprint
  • 26 in. wide runways
  • Handles up to 195 in. 2-wheel alignment wheel bases, adding more medium duty vehicle capability
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

  • (2) 9,000 lb. Swing Air Jacks
  • Two-Speed Lowering
  • Stainless Turnplates

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.




Product Specification

Maximum Vehicle Weight14,000 lbs. (6350 kg)
Max. WheelbaseGeneral service: 201 in. (5105 mm)
Max. wheelbase - General service201 in. (5105 mm)
Maximum Wheel BaseTwo-Wheel Alignment: 195 in. (4953 mm) / Four-Wheel Alignment: 168 in. (4267 mm)
Maximum Wheelbase - Two-Wheel Alignment195 in. (4953 mm)
Maximum Wheelbase - Four-Wheel Alignment168 in. (4267 mm)
Minimum Four-Wheel Alignment88 in. (2235 mm)
Alignment HeightAll lock positions
Lifting Speed1 speed. 60 seconds
Lowering Speed2 speed, 25 seconds
Lowered Height10.75 in. (273 mm)
Maximum Lifting Height72 in. (1823 mm)
Runway Width26 in. (660 mm)
Width92.5 in. (2350 mm)
Width (W1)92.5 in. (2350 mm)
Power Requirement 208-230 VAC, single phase power, 26 Amp
Inside Width (W2)40 in. (1016 mm)
Length280 in. (7112 mm)
Elevated Length (L2)217.25 in. (5518 mm)
Power Requirements208-230 VAC, single phase power, 26 Amp
Air pressure130-150 PSI (9-10.3 bar)
Minimum Concrete Spec.3 in. (76 mm) thick, 3000 PSI (20,700 kPa) rating
Maximum Floor Slope2 in. (51 mm) over 126 in. (3200 mm)
