The fuel rail and injector assembly used on the Hitachi SIDI system on the 2010 LF1 3.6L V6 and LAF 2.0L ECOTEC has two seals on each injector, and these seals are installed with very tight tolerances. Once the engine has been run, injector and rail removal is very difficult. The assembly must be removed as straight as possible to prevent the chance of damaging an injector bore in the cylinder head or the mount assembly. Each mount assembly contains an isolator, and cannot have any force applied to the mount for removal.

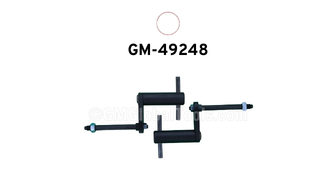

GM-49248 is installed in place of the mounting bolts and reaches under the injector rail near each mount location. The hand wheels on GM-49248 at each mount location are tightened evenly to unseat all injectors evenly, preventing damage to the injectors, cylinder head, and rail mount assemblies.
