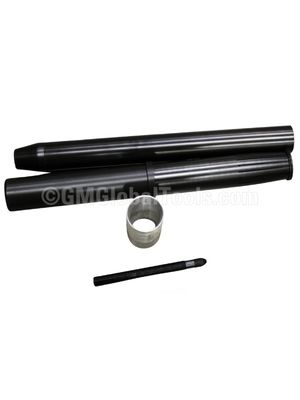

| GM-52094
is a set of three tools that correctly install and compress the five solid
Teflon seals at the front end of the input/turbine shaft. GM-52094-1 is a
long, smooth protector tube with an adjustable depth stop-rod that goes over
the shaft and protects the five seals from damage as they slide down the
turbine shaft one at a time. GM-52094-2 has expandable fingers that snug fit
the protector and evenly push the seals down the protector into their
respective grooves on the turbine shaft without over-expanding the seals.
GM-52094-3 has a tapered ID that gradually compresses the seals to the
correct size OD so they slide inside the front support assembly ID without
being nicked, cut, or twisted out of the groove. |
|
