Item Detail






Brightdrop Adapter Kit with 1064 ALI Mobile Lift Columns
Item Number: SLKBDMCLK325911
Price:   $70,907.33* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

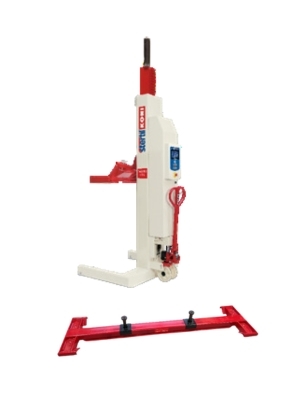

Steri-Koni ST1064 set of four wireless mobile column lifts.  Each column has a capacity of 14,000 lbs. for a total lifting capcity of 56,000 lbs.

Features:

  • Ebight Smart Control System
  • High Resolution 7" Touch Screen
  • Wireless Mesh Network Sync up to 32 columns
  • Hydraulic Pallet Truck Ligting Mechanism with Patented Overload Protection
  • 14" Long Adjustable Fork, suitable for super single tires
  • Fixed Synthetic Wheels that reduce floor surface pressure
  • Easy to Move and position
  • Available Adapters for all Lighting Points including EV

Includes

  • (1) set of four Mobile Column Lifts at 56,000 lbs. capacity, 24 volts DC, control box on each column and adjustable forks
  • (1) Low Profile Crossbeam with supports, capacity 18,800 lbs.
  • (2) Support Extensions 6.3"
  • (2) Flat slideable adapter with Ø40 mm / 1.57" female pick up point for various pick up adapters
  • (2) Brightdrop locating pin adapter

Warranty

Two (2) years labor. One (1) year parts.



Product Specification

Lift SystemHydraulic Lifting System
Operating voltage24 VDC
Charger Amps Required 6.25 amps
Weight of Lift Unit 1,260 lbs
Operating Peak Power4.1HP
Charger Voltage Required115 VAC @ 60 Hz
Lifting Capacity14,000 ea
Maximum Lift Height73"
Overall Height of Lift Unit at Full Rise12'
Wheel Diameter19-45 in
Dimensions44.1"W x 97"H
Maximum hydraulic System Operating Pressure3,240 PSI
Lift Speed (Max Load)70 s
Weight6,345 lbs.

.
