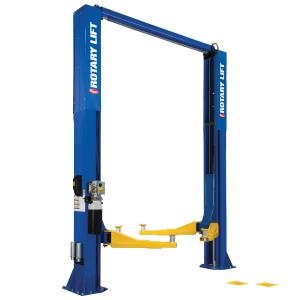

16K 2-Post Symmetric Cargo Lift with 3-Stage Arms, Low Ceiling, Shock Wave
Item Number: ROTSPO16-CARGO-LC-SW
Price:   $29,603.30* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

16,000 lb. Two-Post Super Duty Symmetric Cargo Lift with 3-Stage Arms, Low Ceiling, Shockwave™ equipped.

Designed to service longer van wheelbases. Spot specific pickup points with standard 3-stage arm configuration

Features

  • Thread up adapters for easy vehicle contact
  • 2 Adjustable lift height options
  • 3 Column width options
  • Rise height of over 75"
  • 20 Second lowering time
  • Shockwave™ equipped
  • "Double S" columns for strength
  • ALI Gold Certified
  • Available in Red, Black and Blue

Includes

  • (4) Clip-on Rubber Pads for adapters to spot unibody passenger cars
  • (4) 5" Adapter Extensions
  • (2) 10" Adapter Extensions

Warranty

One year



Product Specification

Rise*77-13/32" - 78-13/32"
Overall Height15' - 16' 6"
Overall WidthContact factory for available widths, drive-thru clearance, inside column widths and arm reach.
Drive-thruContact factory for available widths, drive-thru clearance, inside column widths and arm reach.
Inside ColumnsContact factory for available widths, drive-thru clearance, inside column widths and arm reach.
Front & Rear Arm Min/Max ReachContact factory for available widths, drive-thru clearance, inside column widths and arm reach.
Min Adapter Height5-13/32"
Min Bay Size15' x 30'
Ceiling Height Minimum13’8″ – 14’8″
Motor / Voltage5 HP, 110V
Time of Rise**60 seconds
*Rise measures lowest and highest position of the supplied adapters from floor to full cylinder stroke
**Time Varies depending on vehicle weight .

.
