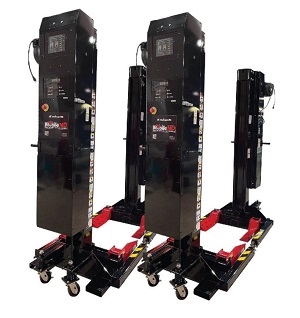

5,000 lb. Mobile Column Lift (set of 4)
Item Number: CLFCLMM-5000


log in for dealer pricing.




Description

A set of four of our new medium-duty mobile columns is capable of lifting 20,000 lbs. on any solid surface. Built with heavy-duty tow handles and spring-loaded caster wheels. These mobile columns are perfect for servicing EVs.

Features

  • 5,000 lbs. per column (20,000 lbs. per set)
  • Sold and operated as a set of 4
  • Virtually NO wheelbase length or width limitations
  • Open-top, removing the inside ceiling height requirement found with 20K 2-Posts
  • Touchpad controls
  • Portable and storable

Includes

  • Batteries - 2x deep cycle in each column
  • Fluids
  • Training


Product Specification

Operating Voltage24 VDC Nominal
Charger Amps Required2.8 amps
Weight of Lift Unit870 lbs.
Footprint of Lift Unit450 sq. in.
Ground Pressure for each Lift (Maximum Load)13 psi
Turning Radius of Lift Unit50 1/2"
Operating Peak Power4HP
Charger Voltage Required120-240 VAC @ 60 Hz
Lifting Capacity5,000 lbs
Maximum Lift Height69"
Overall Height of Lift Unit at Full Rise13' 1-1/8"
Wheel DiameterMinimum: 6" / Maximum: 22"
Dimensions46 3/4"L x 38 1/2"W x 88 1/2"H
Maximum hydraulic System Operating Pressure2,230 psi
Lift Speed (Maximum Load)60" per minute

.
