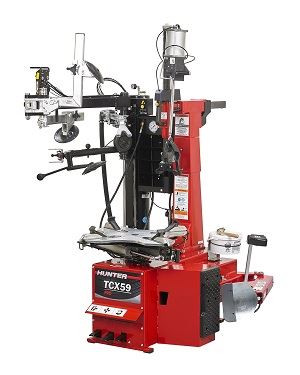

TCX59 Pro Hybrid Tire Changer - Red
Item Number: HUNTCX59PRORED


log in for dealer pricing.




Description

This model builds on the popular TCX59 platform, adding back the dual-basic bead press system and all-new hybrid leverless head. The hybrid design combines the simplicity of a standard head with the labor savings of leverless technology. With a full bead press system, the TCX59PRO is well equipped to service everything from medium duty trucks to high performance passenger car assemblies.

Features

  • Hybrid leverless tool head
    • Lifts bead without use of levers
    • Reduces wheel and tire damage risk
  • Bead Press System
    • Tremendous power and control
    • Aids mounting and demounting
    • Auto-centering simplifies operation
  • Swing-arm column
    • Saves space over tilt-column designs
    • Locks rim diameter and width measurements for same-sized wheels
  • FastBlast™ inflation
    • Outperforms handheld systems
    • Hands free operation is safer and easier
  • Locking lower arm
    • Helps demount heavy and difficult tires
    • Assists match-mounting
  • Tabletop clamp
    • 10-28 in. clamping range (6-30 in. with standard adaptors)
    • Measurement marks ease clamping
    • Twin-cylinder actuators exert more clamping force than single-cylinder designs
  • Motor and drive
    • Powerful 220V high-torque motor
    • Two-speed forward drive
  • PowerOut™ bead loosener
    • Fingertip control is safe and ergonomic
    • Most powerful in the industry
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.


Product Specification

Electrical220V, 1 ph, NEMA plug type L6-20P
Air Pressure Operating Range110-145 psi
Air Volume of Inflation Tank6.5 gallons
Wheel ClampingExternal: 10-26" / Internal: 12-28"
DriveClockwise: 7 rpm and 17 rpm / Counter-clockwise: 7 rpm
Tire Diameter43.3"
Rim Width Maximum14"
Shipping Weight1,050 lbs.
Dimensions50" L x 75" W x 45" H

. .
