Item Detail

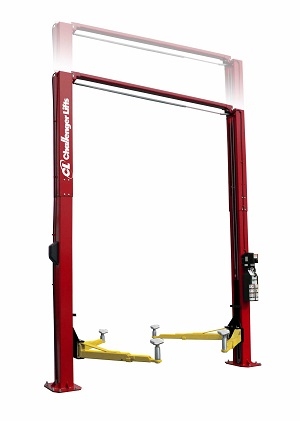

12,000 lb. LE12 2-Post Lift
Item Number: CLFLE12


log in for dealer pricing.




Description

Challenger's LE Series lifts provide symmetric lifting capability with adjustable height to accommodate higher profile vehicles. The LE12 model features a pulley-less jacketed single-point lock release system designed to last.

Features & Benefits

  • ALI certified
  • Heavy-duty 2-stage arms enable a wide range of symmetric lifting.
  • Single point mechanical lock release allows technician to disengage both columns simultaneously.
  • Heavy-duty polyurethane screw pads accommodate wise range of recommended lifting pads.
  • Adjustable column height accommodated higher profile vehicles and provides maximum headroom to work underneath vehicles.
  • Padded overhead shut off system prevents vehicle damage.
  • Power coat finish provides long-lasting durability.
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage.
  • Adjustable footpads, stack adapters, and organizer rack come standard.

Warranty

Click here for warranty information.



Product Specification

Lifting Capacity12,000 lbs. (5,443 kg)
Overall Height166" / 175" (422 cm / 445 cm)
Min. Arm Reach35.75" (910 mm)
Speed of Rise61 sec.
Arms2-stage front / 2-stage rear
Rise Height77.75" (198 cm)
Floor to Overhead Switch159.5" / 168.5" (405 cm / 428 cm)
Ceiling Height Required167" / 176" (424 cm / 447 cm)
Drive-Thru Clearance103" (262 cm)
Max. Arm Reach54.5" (139 cm)
Inside Columns115" (292 cm)
Std. Motor/Voltage²2HP, 208V - 230V
Lifting ConfigurationSymmetric
Overall Width139.75" (355 cm)
Screw Pad Height (min. / max.)5.25" / 6.75" (133 mm / 171 mm)

. .
