Turbinshaft Seal Installer
Item Number: GM-51088
Price:   $319.11* *

* log in for dealer pricing.
Available
Add To Cart


GM-51088 is a set of 3 tools that correctly install and compress the four solid Teflon seals to the turbine shaft to the stator shaft support.

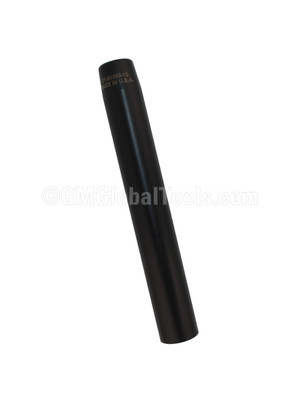

GM-51088-3 is a 8.5"" long 1.4"" OD smooth tube with an adjustable depth stop-rod that goes over the shaft and protects the four seals from damage as they slide down the turbine shaft.

GM-51088-2 has expandable fingers that snug fit the protector and evenly push the seals down the protector into their respective grooves on the turbine shaft without over-expanding the seals.

GM-51088-1 has a tapered ID that gradually compresses the seals to the correct OD so they slide inside the center support without being nicked or cut.
