Item Detail

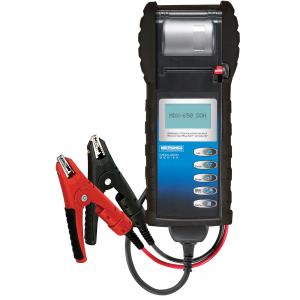

MDX-650P SOH Battery Conductance & Electrical System Analyzer
Item Number: MTRMDX650PSO
Price:   $1,172.22* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

MDX-650P SOH is an advanced diagnostic solution offering full electrical system testing capabilities (battery, starting, and charging) for regular flooded batteries and battery formats designed for start-stop vehicles.

NOTE: THIS TOOL CANNOT BE USED FOR WARRANTY PURPOSES.

Features

  • Legendary Midtronics accuracy, performance and durability
  • New Start/Stop AGM/EFB battery testing capability
  • Battery State-of-Health meter can be shown or printed for customer
  • Durable built-in printer generates detailed shareable results
  • Full rubber boot protects tester from shock and abuse
  • Durable field replaceable 10’ cables
  • Uses low cost replaceable AA batteries

Accessories

MTRA156     Universal Soft Carry-All Bag
MTRA207     4' Replaceable Cable
MTRA208     10' Replaceable Cable
MTRA033     Lead Stud Adapter Set (2 male, 2 female)
MTRA095   6-Pack Thermal Printer Paper*
*Replacement paper rolls available at most office supply stores*

Warranty

Limited Warranty to be free of defects in materials and workmanship for a period of one year from the date of purchase

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and Reproductive harm. For more information go to www.P65Warnings.ca.gov


Product Specification

Voltage Range1Vdc - 30Vdc
Cable Length10' (305cm)
LanguagesEnglish, Spanish, French-Canadian
Housing MaterialAcid-resistant ABS plastic
Dimensions10.6” x 3.9” x 2.4” (27cm x 10cm x 5cm)
Weight1.7 Lbs. (771g)
Test RangeCCA: 100-2000 BY 5 CA: 100-2000 BY 5 • MCA: 100-2000 BY 5 • JIS#: By Part Number • EN: 100-2000 BY 5 • SAE: 100-2000 by 5 • DIN: 100-1200 by 5 • IEC: 100-1200 by 5
PowerUses the power of the battery under test and (6) AA internal batteries
Display5-line Text/Graphical Backlit Display
Operating Temperature0°C to +50°C (32°F to +122°F)

. .
