Two-Post Lifts

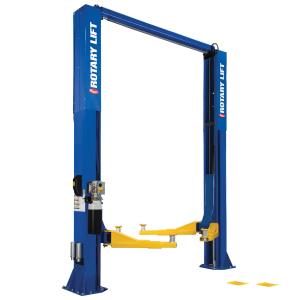

16K 2-Post Heavy Duty Lift

Item Number: ROTSPO16

Direct from 3rd Party Supplier
Add To Cart

Description

16,000 lb. 2-Post Super Duty Symmetric Lift with greater lifting capacity and innovative three-stage Trio™ Arms.

Features

Industry leading versatility - Pick up a greater variety of vehicles faster and easier all on one heavy duty 2-post lift
Trio Arms offer three stages of flexibility in a two-piece arm. No extra heavy inner arms to move for positioning.
20 second descent
Service class 1 to class 5 vehicles
22% greater arm reach than conventional 2 stage arms
Automatic arm restraints engage when the lift is raised
Thread-up adapters for easy vehicle contact
ALI certified

Warranty

One year

Product Specification

Total product weight	3,500 lbs.
Lifting capacity	16,000 lbs.
Max. load per arm	4,000 lbs.
Min. truck adapter rise height	77-31/32"
Max. truck adapter rise height	80-1/32"
Standard height overall	15' to 16'6"
Standard width overall	13'5"
Standard drive-thru clearance	111-11/32"
floor to overhead switch	15' 10-13/16"
Reach / front arm min. / max.	34-11/16" / 64"
Reach / rear arm min. / max.	34-11/16" / 64"
Min./max. truck adapter height	5-31/32" to 8-1/32"
Min./max. low step height	10-31/32" to 13-1/32"
Min./max. high step height	15-31/32" to 18-1/32"
Minimum Bay Size	15' x 30'
Motor / Voltage	4 HP / 208v - 230v
Time of Full Rise	81 seconds at full capacity
Standard ceiling height required	15'2" to 16'8"

. .
