Item Detail






Power Supply Charger with 2 Meter Charge Cable
Item Number: MTRMSP0702GM
Price:   $1,504.44* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

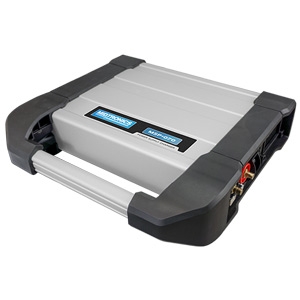

The Midtronics MSP-070 Power Supply Charger provides clean, reliable power for charging and maintaining battery state-of-charge during service reflash, complex maintenance, and in the showroom.

Features

  • Selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types
  • Avoid potential battery damage from drain during vehicle service
  • Maintain vehicle electronic and accessory settings
  • Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
  • Certifications: UL, FCC, CEC (California), CUL, CE, RoHS
  • Low profile to fit under vehicles
  • Dynamic internal fan control offers quiet operation
  • Reverse polarity protection
  • Clamp disconnect detection
  • Circuit breaker for DC output protection
  • Clamp high temperature detection
  • Input surge protection
  • Power factor correction

Includes

  • Power supply charger
  • AC power cord
  • 2m field-replaceable charge cables, MTRA680

Warranty

One year

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. . For more information go to www.P65Warnings.ca.gov





Product Specification

Output14.4 VDC; 70A maximum
Operating temperature range32°F to +140°F (0°C to +60°C)
Storage temperature range14°F to 185°F (-10°C to +85°C)
Humidity15% to 18% RH, non-condensing
Height3.40" (86.36 mm)
Width10.24" (260 mm)
Length15.35" (390 mm)
Weight without cables15.55 lbs (7.05 kg)
Weight with cables19.43 lbs. (8.78 kg)
Input voltage110-240VAC; 50-60 Hz; 12A max

.
