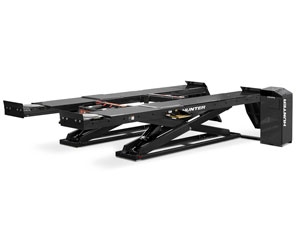

10,000 lb. Surface Mount Scissor Lift, Stainless Steel Turnplates - Black

Item Number: HUNRX10KBLK

Description

10,000 lb. capacity surface mount scissor lift, includes (2) 6,000lb Swing Jacks, and Stainless turnplates.

Features

Large capacity with a small footprint
24 in. wide runways
Best in class drive on height
Integrated air line
Sensor feedback system
Velocity safety fuses
Safety locks
Movable work steps
Fast descent speed - 50% faster lowering times
Ensures a soft landing by automatically slowing the last several inches.
Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specification

Speed	55 seconds raise, 25-50 seconds descent
Air pressure	90-150 psi (6.2 - 10.3 bar)
Tread Width - Maximum Outside	88" (2235 mm)
Tread Width - Minimum Inside	40" (1016 mm)
Runway width	24" (609 mm)
Alignment Height	All lock positions
Maximum Lifting Height	72" (1829 mm)
Minimum Four-Wheel Alignment	88" (2235 mm)
Maximum Wheelbase - Four-Wheel Alignment	158" (4013 mm)
Maximum Wheelbase - Two-Wheel Alignment	166" (4216 mm)
Maximum wheelbase: General Service	171" (4343 mm)
Maximum Vehicle Weight	10,000 lbs. (4536 kg)

. .
