Item Detail

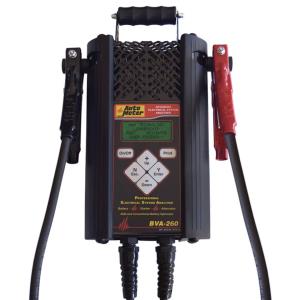

BVA260-GM Battery & Electrical System Tester
Item Number: AMRBVA260GM
Price:   $1,573.33* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

Tool to increase battery sales!

One of the most technologically advanced handheld testers currently available, the BVA260-GM sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load™ technology to deliver a true load test, the BVA260-GM can precisely diagnose the battery, starting and charging system in under 82 seconds. This unit is AGM optimized for compatibility with nearly all battery types. This adds up to a tester that in many cases delivers a superior test result to even traditional Carbon Pile testers. A convenient USB output allows test data to be displayed as an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis.

Features

  • Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH.
    Tests starting/charging circuits, partially discharged batteries, and capable of detecting bad cells.
    • Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-66 USB cable (Included) and AC-62 AMPLink software.
    • Use to Test Every Vehicle that Enters your Shop. 82 Seconds for Peace of Mind for your Customer.
    • Supports battery sales within the dealership.
  • AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 AMP True Load testing and fully automatic testing protocol. This eliminates the need to apply inconsistent charging system loads such as headlights, fans, etc. which makes our testers easier to use and more accurate.
    • Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
    • Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming calculations.
    • True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test.
  • 6 Gauge, 42" leads with professional grade clamps that are field serviceable.
  • Intuitive easy input menu driven operation, transmitted via backlit LCD screen for ease of use.
  • English and Spanish language menus and test results.
  • Easily upgraded for future tech enhancements using AutoMeter's exclusive AMPLINK Data Management software.

Accessories

AMRPR12 Infrared External Printer
AMRAC24J Protective Plastic Carrying Case
AMRAC62 AMPLINK PC data download software
AMRAC66 USB Cable, A to MINI B
AMRAC77 AMPNET Data Management System

Warranty

Twelve (12) month limited warranty from date of purchase

WARNING: This product can expose you to chemicals, which are know to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov


Product Specification

Battery Types & Voltage6 & 12 Volt, Flooded & AGM Optimized
Battery CCA Range100 - 1600 CCA
Automated Load120 Amp
Alternator TestYes / 12 & 24 Volt
Starter Diode TestYes
Starter Draw TestYes
Load Leads42", 6-Gauge Cable & Clamp
Field Replaceable LeadsYes
Infrared Battery Temp. MeasurementYes
Communications to PCUSB
Self DiagnosticsYes
Memory150 Test with Enhanced Data Export
LanguageEnglish / Spanish
Operating Temperature0° to 120° F
Operational Humidity0 - 85% - Non Condensing
Internal Battery9V
Rubber BootYes
HandleYes
Clamp Storage PinsYes
Dimensions5.9" x 936" x 2.1"
Weight4 lbs.

. .
