Item Detail

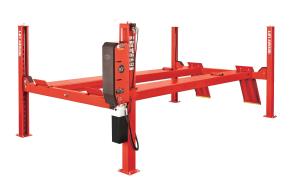

14K Standard Four-Post Lift, Closed Yoke w/ SHOCKWAVE
Item Number: ROTSM14LSW
Supplier: ROTARY LIFT
Price:   $13,324.43* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

14,000 lb. closed yoke, four-post lift with a maximum wheelbase of 182-1/2" and an overall length of 20'9"

Maximize your productivity by using the lift that's right for you. We offer more productivity features than anyone in the industry. More importantly, our lifts are designed to meet our exceed strict ANSI standards and go through rigorous safety tests such as a 1.5 times rated capacity test, lock test by cutting the cables, and deformation tests. With our attention to detain and innovation, there is no other four-post on the market that matches Rotary 's quality and value.

Features

  • Higher Rise to Over 78"
    • Provides more work area under the vehicle
  • Powder Coated Hammer Tone Paint Finish
    • Improves durability and paint life
  • Louvered Ramps with Polymer Rollers
    • Provide improved traction and less floor gouging when driving on the lift
  • Patented Dual Function Sentinel Lock™ System
    • Features a slack cable guide arm that stays "on guard" to manage the lock latch. In a slack cable situation, the lock system kicks the lock into position. Fewer parts means less opportunity for service issues and more peace of mind
  • Adjustable Latch Bars
    • Ensures the runways are level when resting on the latch bars at any of the multiple locking positions
  • Improved Hydraulic and Mechanical Lifting System Design
    • Concealed and protected under the runway, high performance cables and sheaves generate greater durability and a more efficient and dependable lift operation
  • Equipped with SHOCKWAVE
    • 2X faster rise and decent

Options

  • ROTRJ7000   7,000 lb. Rolling Jack

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)



Product Specification

Rise / Floor to Top of Runway78-3/4" (2000 mm)
Runway Length16' 7-1/4" (5061 mm)
Inside of Columns116-1/4" (2953 mm)
Width Between Runways43" - 46" (1092 mm - 1168 mm)
Voltage Single Phase110V
Minimum Bay Size15' x 26' (4572 x 7925 mm)
Lifting Capacity14,000 lbs. (6350 kg)
Width Overall 11' 11-3/4" (3346 mm)
Height of Runways7" (178 mm)
Width of Runways20" (508 mm)
Length Overall20' 10" (6350 mm)
Time of Full Rise (Seconds)35 for Rise / 18 for Descent
Height of Columns 7' 6-1/2" (2299 mm)
Maximum Wheelbase182 (4622 mm)
Rise73-3/4" (1873 mm)
Between Front and Rear Columns195-1/4" (4959 mm)
Motor5 HP

.
