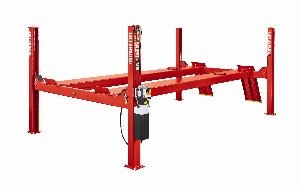

18,000 lb. Four-Post Lift, w/ 2' Extension
Item Number: ROTSM18EL2
Supplier: ROTARY LIFT
Price:   $18,979.98* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

18,000 lb. Four post Lift with a maximum wheelbase of 194".

18,000 lbs. capacity means more shop advantages
Take your shop services to the next level with this heavy-duty four-post lift. Designed without obstructions to vehicle access, technicians have room to move increasing productivity. This heavy-duty lift is big on performance without taking away signature Rotary lift features.

This lift is loaded with standard features
You only expect to see with a Rotary drive-on lift.

The heavy-duty hydraulic cylinder and lift mechanism
Located underneath the runway, eliminating damaging vehicle obstructions and prolonging the hydraulic system's lifespan.

Features

  • Protective strips on the end of the ramp eliminate floor gouging.
  • The cable inspection port allows a view of 100% of the cable length, an ANSI requirement.
  • Filter/lubricator/regulator for clean, lubricated air extends the life of your lift and air powered tools by keeping contamination out of the air lines.
  • ALI Certified
  • Cylinder located under the runway
  • Dual Function Sentinel Lock™ System
  • Adjustable latch bars
  • One piece runway

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)



Product Specification

Width Between Runways (Max.)46" (1168 mm)
Inside of Columns122-3/16" (3104 mm)
Width Between Runways (min)43" (1092 mm)
Voltage Single Phase208V - 230V
Minimum Bay Size13' x 27' (3962 x 8230 mm)
Lifting Capacity18,000 lbs. (8165 kg)
Width Overall 137-11/16" (3497 mm)
Height of Runways8-5/16" (211 mm)
Width of Runways22" (559 mm)
Length Overall25' 11" (7904 mm)
Time of Full Rise80 seconds
Height of Columns 6' 5-3/4" (1975 mm)
Maximum Wheelbase230" (5842 mm)
Rise / Floor to Top of Runway68" (1727 mm)
Between Columns248" (6299 mm)
Motor2 HP

. .
