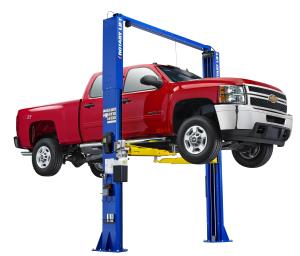

12,000 lb Symmetrical 2-Post Lift with Truck Adapters
Item Number: ROTSPO12TA
Supplier: ROTARY LIFT
Price:   $11,685.54* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

For decades, Rotary® has been the recognized leader in vehicle service lifts. This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market. With Rotary lifts, you have the service and support you need. Our world-wide network of service companies are always standing by.

Most of our lifts are third party tested by ETL and certified by ALI to meet or exceed strict ANSI standards such as cable cut and deformation tests. Be sure the lift you buy has the gold ALI/ETL label that assures your lift has been tested to meet these standards.

Features

  • True symmetric column design
  • “Double S” column design with single piece construction provides a channel for the bearings to travel in, maximizing the strength of the column and surface contact area of the bearing
  • Single point lock release which releases the locks at the same time
  • Two full stroke cylinders, one in each column
  • Arm restraints on each arm engage when the vehicle is lifted
  • Third party certified

Warranty

One (1) year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)



Product Specification

Rise72-3/4" - 75-3/4" (1848 mm - 1924 mm)
Height Overall13' 8" (4166 mm)
Overall Width11' 5-5/8" (3496 mm)
Drive-thru Clearance102-3/8" (2600 mm)
Floor to Overhead Switch13' 3-1/8" (4042 mm)
Reach (front arm min.)27-1/2" (699 mm)
Reach (front arm max.)59" (1499 mm)
Rear (rear arm min.)27-1/2" (699 mm)
Rear (rear arm max.)59" (1499 mm)
Minimum Adapter Height4-3/4" -7-1/4" (121 mm - 184 mm)
Low Step Height8-1/4" - 10-3/4" (210 mm - 273 mm)
High Step Height9-3/4" - 12-1/4" (248 mm - 311 mm)
Inside of Columns113-3/8" (2880 mm)
Cylinder Height at Full Rise11' 10-3/4" (3626 mm)
Lifting Capacity12,000 lbs. (5443 kg)
Motor / Voltage208V-230V, 2HP
Time of Full Rise60 seconds
Ceiling Height Required (Standard)13' 9" (4191 mm)
Maximum Load per Arm3,000 lbs. (1360 kg)
Minimum Bay Size12' x 26' (3658 mm x 7925 mm)

. .
