Item Detail

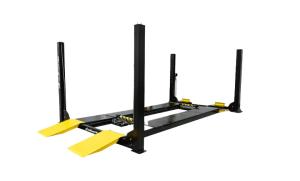

15K 4-Post Lift/ Alignment, Closed Front
Item Number: CLF4115XFX
Supplier: CHALLENGER LIFTS INC


log in for dealer pricing.




Description

Designed with productivity and safety in mind, our newly improved 15,000 lb. 4-Post Lift would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.

Increase your customer base with this lift as it can accommodate and service a wide range of vehicles with its 26? wide runways. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. All while boosting workplace safety with our closed front design, assisting technicians moving around a vehicle’s frame.

Also available is our Galvanized Coating Upgrade. This will upgrade the runways, jack rails and turn plate pockets to a galvanized coating to greatly extend the life of your 4115 Lift.

ALI/ETL certified.

Features

  • All-new and wider 26” runways.
  • Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
  • Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
  • Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
  • Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
  • Compatible with the industry’s latest imaging alignment systems.
  • 17 locking positions with improved lock design.
  • Optional Alignment kit includes rolling jacks, internal airline system, & stainless-steel turn plates
  • Color Available: Black

Accessories

  • CLF40707   15K 36" Ramp Kit
  • CLF40707L 15K 52" Ramp Kit

Warranty

Click here for warranty information.



Product Specification

Lifting Capacity15,000 lbs
Open or Closed FrontClosed
Overall Length250.75"
Overall Width142"
Inside ColumnsFront: 120.75" Rear: 125.5"
Between Columns195"
Height of ColumnsFront: 99.25" Rear: 98"
Height of Runways7"
Width of Runways26"
Width Between Runways40.625"
Max. Wheelbase183"
Rise Height78"
Air Supply Requirements90 - 120 PSI
Motor/Voltage2HP, 208v-230v, 60Hz, 1Ph
Rise Time85 s
Min. Recomm. Bay Size14' x 24'

. .
