Item Detail

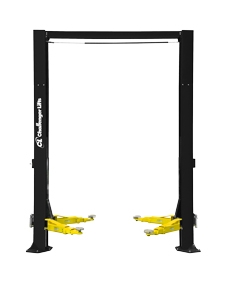

12K Heavy Duty Adjustable Wide Two Post Lift
Item Number: CLFCL12A
Supplier: CHALLENGER LIFTS INC


log in for dealer pricing.




Description

 12K Heavy Duty Adjustable Wide Two Post Lift

Our 12,000 lbs. capacity CL12A 2-Post lift can accommodate a wide range of standard cars, trucks, vans, and SUV's within the same service bay with +6" & 12" width adjustment and optional +1' & +2' height extensions. Standard features also include 3-stage front and rear arms.

Features

  • +6” & +1’ width adjustment and 6" height adjustment
  • Premium telescoping screw pads adjust to multiple heights minimizing the need for additional adapters
  • Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
  • Premium powder coat finish provides long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • ALI Certified
  • Available with optional 1’ (CLFCL12A-1) and 2’ (CLFCL12A-2) height extensions
  • Optional dual pendant and quick cycle features available to improve speed and spotting for technicians

Available Color Options

  • Red, Blue, Black - specify color choice at time of order.

Includes

  • CLF10315 Truck Adapter Extension Kit

    Warranty

    Click here for warranty information.



    Product Specification

    Lifting Capacity12,000 lbs.
    Lift ConfigurationSymmetric
    Arm Configuration3-Stage, front and rear
    Rise Height84 3/4" with 6" adapters
    Overall Height13' 8" or 13' 2"
    Overall Width11' 10", 12' 4", 12' 10"
    Drive Thru Clearance103 -1/2", 109-1/2", 115-1/2"
    Floor to Overhead Switch13' 2" or 12' 8"
    Arm ReachMin: 27-1/2", Max: 59"
    Screw Pad HeightMin: 5", Max: 12-3/8" (includes 6" stack adapter)
    Inside Columns9' 6-1/2", 10' 1/2", 10' 6-1/2"
    Standard Motor / Voltage2HP, 208V-230V, 60Hz, 1 Ph
    Rise Time63 Seconds
    Required Ceiling Height13' 9" or 13' 3"

    .
