Item Detail

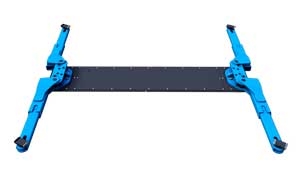

SLW210-TA-SW 10K SMARTLIFT Wide Inground Lift, SHOCKWAVE, Truck Adapters
Item Number: ROTSLW210U0T0
Supplier: ROTARY LIFT
Price:   $22,168.87* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

Rotary's SMARTLIFT WIDE inground lift design is ideal for lifting vehicles via the frame. The obstruction-free, wide design provides greater under vehicle access and reduces the risk of contact between the lift and vehicle parts.

Features

  • Lifting Versatility with Next-Level Service
    • BEV battery removal - wide plungers open the access for removal of underbody covers and electric vehicle batteries.
    • Remove truck bodies off frames
  • Space-saving footprint creates greater vehicle access while working around the lift.
  • Environmentally responsible
    • Self-contained mechanical, hydraulic and electrical components
  • Proven SMARTLIFT Technology
    • Rod seal cylinders that do not exchange air with containment
    • All hydraulic and air components serviceable without plunger removal
    • Polymer molded containment won't degrade
  • Patented Trio Arms®
    • Low profile arms improve clearance and reduce risk of vehicle damage.
    • Two-piece multiple adjustment arm design equals faster spotting speed with greater reach, interchangeable with adapter options (FA, RA, TA).
    • Allows for Quick positioning of the adapter to the vehicle pickup points without moving heavy arms
    • Integrated adjustment easily slides the adapter to the vehicle contact location saving technicians additional set-up time
  • SHOCKWAVE Technology
    • Provides rise time up to twice as fast as standard lifts.
    • Patented DC power system give provides lower cost and more reliable operation while using two standard Group 24 batteries.
    • Built-in battery charger uses 110V power, eliminates the need for 220V wiring.
    • If the shop loses power, the SHOCKWAVE equipped lift keeps working.
  • Available in red, blue, or black - must specify color at time of order.

Includes

  • Patented TRIO arms
  • SHOCKWAVE technology
  • Multi-position wheel spotting dish
  • TA truck adapters

Warranty

One year labor, two years parts when installed by Rotary authorized installer.



Product Specification

Lifting Capacity10,000 lbs.
Minimum Arm Reach19-11/16"
Maximum Arm Reach 44-1/2"
Rise / 71" Cylinder Stroke75-1/4" - 76-7/16"
Width Overall 119-5/8"
Drive-Thru Clearance88-1/16"
Minimum Adapter Height4-7/8"
Ceiling Height MinimumEquals rise with tallest adapter extensions plus height of the vehicle
Voltage110V
Electrical Usage Ø.01kWh per cycle
Guide Plunger Diameter8-1/2"
Time of Full Rise / Decent25 Seconds / 19 Seconds
Minimum Bay Size11' x 24' (3353 X 7315 mm)

.
