Item Detail

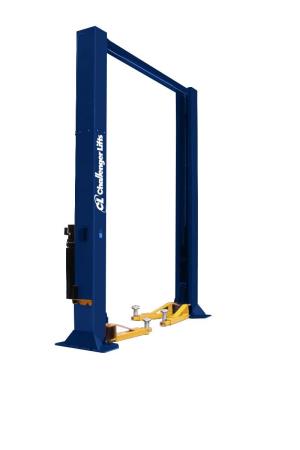

20,000 lb. Heavy-Duty 2-Post Symmetric Lift with 2-stage Arms - 2 ft. Extended Height
Item Number: CLFCL20-2
Supplier: CHALLENGER LIFTS INC


log in for dealer pricing.




Description

Heavy-duty 2-post surface lift with symmetric lifting capabilities. 20,000 lb. lifting capacity - standard height - arms are adjustable rubber pads - standard height adapters included.

Features and Benefits

  • They are engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
  • Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
  • Oversized 5" diameter steel pulley and heavy-duty 3/8" cable reduces stress on the equalization system and increases cable life.
  • 60" lifting carriage design increases lift life.
  • Adjustable width and symmetrical design allow easy access to the vehicle's interior.
  • Dual integrated rubber door guards to prevent door damage.

Available Color Options

  • Red, Blue, Black - specify color choice at time of order.

Warranty

Click here for warranty information.



Product Specification

ALI CertifiedYes
Min. Ceiling Heights Required15'8" / 16'2" / 16'8"
Rise Time62s
Air Supply Requirements90-120 psi
Motor / Voltage3HP, 1Ph, 60Hz, 208-230v
Between Columns120" / 126" / 132"
Max. Screw Pad Height7.6"
Min. Screw Pad Height6.2"
Max. Arm Reach62"
Min. Arm Reach38.5"
Floor to Overhead Switch179" / 185" / 191"
Drive-Thru Clearance104.25" / 110.25" / 116.25"
Overall Width Options154.75"/ 160.75"/ 166.75"
Overall Height Options186" / 192" / 198"
Max. Rise Height (w/ Stack Adapters)84.6"
Min. Rise Height76.6"
Max. Load Per Arm5,000 lbs.
Arm Configuration2-Stage Front/Rear
Lift ConfigurationSymmetric
Lifting Capacity20,000 lbs.

. .
