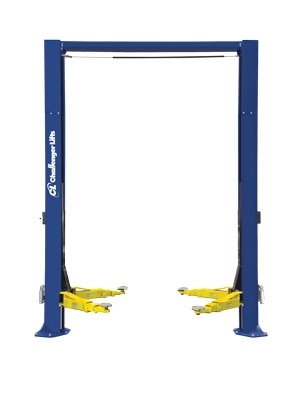

12,000 lb. 2-Post Lift with Dual Pendant Controls and Quick Cycle
Item Number: CLFCL12DPCQC
Supplier: CHALLENGER LIFTS INC
  Superseded To:

CLFCL12ADPCQC





NOTE:  To lift electric vehicles (EVs), optional Electric Vehicle Footpad Kit, CLFTFPK, must be used.

Description

Service more vehicles and make more money with Challenger Lifts' CL12, 12,000 lb. capacity 2-post lift. The CL12 comes standard with 3-stage front and 3-stage rear arms providing the advantage of lifting many common cars, trucks, vans and SUVs within rated capacity.

We've also added our time-tested productivity tools, including Quick Cycle Technology and Dual Pendant Controls to boost your efficiency.

Features

  • 3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
  • 60? lifting carriage design increases lift life
  • Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
  • Padded overhead shut off system prevents vehicle damage
  • Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
  • Premium powder coat finish provides long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Dual pendant power controls' Up/Down power button is always within the technician's reach and provides lift operation from either column. It also enables
    expedited spotting by providing an unobstructed view of the lifting points.
  • Quick Cycle hydraulic enhancement package permits full lift rise in approximately 40 seconds while lowering speed is improved to approximately 17 seconds.

Includes

  • CLF10319 Truck Adapter Extension Kit

Accessories

  • CLFTFPK    Electric Vehicle Footpad Kit - designed to give a flat lifting surface

Warranty

One year labor, two years functional parts, and five years structural parts.



Product Specification

Lifting Capacity12,000 lb. (5443 kg)
Rise Height84¾" (2153 mm)
Height Overall13' 8" (4166 mm)
Width Overall 11' 10" (3607 mm)
Drive-Thru Clearance103½" (2629 mm)
Floor-Overhead Switch157" (3988 mm)
Arm Reach - Minimum27½" (700 mm)
Arm Reach - Maximum59" (1500 mm)
Adj. Adapter Height5" to 12⅝" (127 mm to 320 mm)
Adj. Adapter Height (with Medium Extensions)8" to 9⅝" (203 mm to 244 mm)
Adj. Adapter Height (with Hight Extensions)11" to 12⅝" (279 mm to 320 mm)
Inside Columns114½" (2908 mm)
Motor 3 HP
Voltage (1 Phase Std.)208v - 230v
Speed of Rise40 Seconds
Ceiling Height Required13' 9" (4191 mm)

. .
