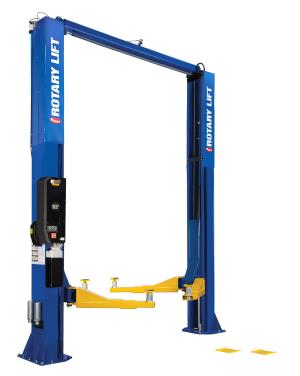

20K 2-Post Heavy Duty Lift with Shockwave

Item Number: ROTSPO20SW

Supplier: ROTARY LIFT Complete Item List

Direct from 3rd Party Supplier
Add To Cart

Description

Shockwave equipped 20,000 lb. 2-Post Super Duty Symmetric Lift with greater lifting capacity and innovative three-stage Trio™ Arms.

Features

Industry leading versatility - Pick up a greater variety of vehicles faster and easier all on one heavy duty 2-post lift
Trio Arms offer three stages of flexibility in a two-piece arm. No extra heavy inner arms to move for positioning.
Service class 1 to class 5 vehicles
22% greater arm reach than conventional 2 stage arms
Automatic arm restraints engage when the lift is raised
Thread-up adapters for easy vehicle contact
ALI certified
Shockwave equipped
Spotline motion activated laser

Warranty

One year

Product Specification

Reach / front arm min. / max.	34-11/16" / 64"
Reach / rear arm min. / max.	34-11/16" / 64"
Min./max. truck adapter height	5-31/32" to 8-1/32"
Min./max. low step height	10-31/32" to 13-1/32"
Min./max. high step height	15-31/32" to 18-1/32"
Motor / Voltage	5 HP / 110v
Minimum Bay Size	15' x 30'
Total product weight	3,500 lbs.
Lifting capacity	20,000 lbs.
Max. load per arm	5,000 lbs.
Min. truck adapter rise height	77-31/32"
Max. truck adapter rise height	80-1/32"
Standard height overall	15' to 16'6"
Standard width overall	13'5"
Standard drive-thru clearance	111-11/32"
floor to overhead switch	15' 10-13/16"
Time of Full Rise	60 seconds at full capacity, 36 seconds at half capacity
Standard ceiling height required	15'2" to 16'8"
