Item Detail

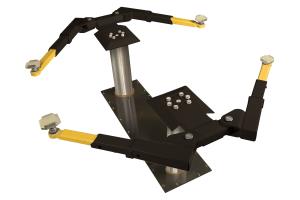

12K EnviroLift­® Lift, 2 Stage Arms & Bench Mount Controls
Item Number: CLFEV1220BMC
Supplier: CHALLENGER LIFTS INC


log in for dealer pricing.




Description

Challenger's electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demand of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We've also added out time-tested productivity tools, including Bench Mount Controls to boost your efficiency.

Features

  • 3-stage front and rear arms safely lift both symmetrically and asymmetrically within the same service bay.
  • 87" Drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on.
  • Long bearing contact provides increased stability.
  • Mechanical lock engages every 3", allowing technicians to work at their ergonomic working height to increase productivity and minimize fatigue.
  • Stainless steel air lock release promotes longer working life with its corrosion resistant design
  • Chrome non-breathing ram style cylinder minimizes water intake and other contamination.
  • 8-1/2" Diameter chrome pistons provides car lift with greater stability under load.
  • Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contamination from entering into bearings.
  • Bench-Mounted Controls

Benefits – Environmental

  • The fully contained, sealed polymer housing (made from recycled plastic) minimizes risk of hydraulic fluid seeping into the ground as associated with low pressure in-ground lifts.

Includes

  • CLF10315   Stack Adapter Extension Kit

Warranty

Click here for warranty information.



Product Specification

Lifting Capacity12,000 lb. (5442 kg)
Stroke68" (1727 mm)
Rise Height81-1/4" (2064 mm)
Width Overall 115" (2921 mm)
Drive-Thru Clearance87" (2210 mm)
Reach (arm minimum)19-5/8" (498 mm)
Reach (arm maximum)48" (1219 mm)
Adjustable Adapter Height (with Medium Extension)8" - 9.75" (203 mm - 248 mm)
Adjustable Adapter Height (with High Extension)11" - 12.75" (289 mm - 324 mm)
Capacity (per arm)3,000 lb. (1361 kg)
Guide Plunger Diameter8-1/2" (216mm)
Motor2 hp
Voltage (Single Phase Std.)208V - 230V
Speed of Rise60 seconds
Air Requirements75 - 125 p.s.i.
Recommended Ceiling Height12' (3658 mm)

. .
