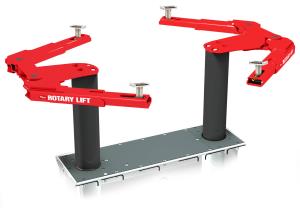

12,000# In-Ground SmartLift Trio w/Liquid Detection System
Item Number: ROTSL212ITA
Supplier: ROTARY LIFT
Price:   $18,725.54* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

12,000 LB In-Ground SmartLift® Trio™ with Liquid Detection System and Truck Adapters offers the superstructure that gives you three ways to increase productivity with a sleek new design:

1)  Lower Profile Yoke = Greater Drive Thru Clearance
2)  New 2-Piece, 3-Stage Arm Operates Like Three |
3) 18% Greater Reach in a Shorter Arm!

Inground lifts offer a more space-efficient solution for your shop. With Rotary's inground SmartLift®, there are fewer obstructions in the shop, allowing your technicians more room to move about. The SmartLift® is completely encased in a polymer housing, protecting the lift from corrosive elements and containing any leaks if they occur.

Features

  • Recessed Bolts Provide a Smoother Drive-Over
  • Improved Drive Over Pad is Lower with a more contoured profile that allows for easier entry and exit to service bays.
  • New Storage Compartment provides easy access for technicians to keep small parts and tools during vehicle service.
  • Patent Pending Multi-Position Adapter Slider adjustment easily slides to a pinpoint location.
  • Three-position flip-up adapters allow quick positioning on a variety of pick up points.
  • Rotary's patented Liquid Detection System which signals the user if fluid were to gather in the containment housing.  LDS allows the owner to remove fluid before it causes possible corrosion to internal parts
  • ALI and ETL certification

Warranty

Two years on parts and One year on labor.  This lift must be installed by a Rotary Authorized Installer (RAI)  All warranties voided if installed by someone other than a  Rotary Authorized Installer.  Lift must be registered with Rotary Lift by a Rotary Authorized Installer who provides the installation date of equipment, warranty is then based on the Installation date.  Otherwise, any warranty that is provided by Rotary is based on the Ship Date of equipment.



Product Specification

Time of Full Rise / Descent 53 Seconds / 24 Seconds
Electrical Usage Ø.01 kWh per Cycle
Rise (with adapter in high step position)76-3/8" - 83-7/8" (1940 mm - 2130 mm)
Width Overall 98-1/2" (2502 mm)
Drive-Thru Clearance88" (2235 mm)
Reach (min)31-1/2" (800 mm)
Reach (max)48" (1219 mm)
Reach (overall arm min.)77" (1956 mm)
Reach (overall arm max.)110" (2794 mm)
Min. Adapter Height5-3/8" (136 mm)
High Step Height7-7/8" (200 mm)
Lifting Capacity Overall12,000 lbs. (5443 kg)
Lifting Capacity (per arm)3,000 lbs. (1361 kg)
Guide Plunger Diameter8-1/2" (216 mm)
Motor2 hp
Voltage Single Phase208V - 230V
Min Bay Size12' x 26' (3658 x 7925 mm)

.
