10K Inground SmartLift® Trio™ w/ TA Adapters & Shockwave
Item Number: ROTSL210TASW
Supplier: ROTARY LIFT
Price:   $16,365.54* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

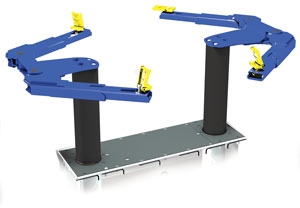

10,000 LB In-Ground SmartLift® Trio™ with Truck Adapters offers the superstructure that gives you three ways to increase productivity with a sleek new design:

1) Lower Profile Yoke = Greater Drive Thru Clearance
2) New 2-Piece, 3-Stage Arm Operates Like Three |
3) 18% Greater Reach in a Shorter Arm!

Inground lifts offer a more space-efficient solution for your shop. With Rotary's inground SmartLift®, there are fewer obstructions in the shop, allowing your technicians more room to move about. The SmartLift® is completely encased in a polymer housing, protecting the lift from corrosive elements and containing any leaks if they occur.

Features

  • Recessed Bolts Provide a Smoother Drive-Over
  • Improved Drive Over Pad is Lower with a more contoured profile that allows for easier entry and exit to service bays.
  • New Storage Compartment provides easy access for technicians to keep small parts and tools during vehicle service.
  • Patent Pending Multi-Position Adapter Slider adjustment easily slides to a pinpoint location.
  • Totally contained system uses 95% less oil than conventional in-ground lifts
  • Stainless steel cylinder and fittings and polymer housing for maximum corrosion resistance
  • An 8½" piston diameter for greater stability
  • Polymer rubber pad adapters that are vertically adjustable and have stackable inserts for a precise lift
  • ALI and ETL certification

Accessories

  • ROTFJ7880     Adapter extension kit for SUVs and trucks

Warranty

One year for parts and labor.  Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)



Product Specification

Electrical Usage Ø.01 kWh per Cycle
Rise (with adapter in high step position)75-1/4" - 81 3/8" (1911 mm - 2067 mm)
Width Overall 108-1/4" (2749 mm)
Drive-thru Clearance88" (2235 mm)
Reach (min)19-1/4" (489 mm)
Reach (max)41-1/4" (1047 mm)
Reach (overall arm min.)54-1/2" (1378 mm)
Reach (overall arm max.)99" (2515 mm)
Minimum Adapter Height4-1/4" (108 mm)
High Step Height (measured to Polymer Pad)5-3/8" (136 mm)
Lifting Capacity Overall10,000 lbs. (4536 kg)
Lifting Capacity (per arm)2,500 lbs. (1134 kg)
Guide Plunger Diameter8-1/2" (216 mm)
Motor2 hp
Voltage Single Phase110V
Time Of Full Rise / Descent25 Seconds / 19 seconds
Min Bay Size11' x 24' (3353 x 7315 mm)

.
