Item Detail






18K Alignment Rack 194WB
Item Number: ROTAR18
Supplier: ROTARY LIFT
Price:   $34,324.41* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


Description

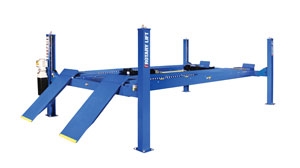

AR18 Heavy Duty Four Post Drive-On Alignment Lift can handle a wheelbase range from 63" up to 177" and is compatible with new technology alignment systems on the market today.

Features

  • 18,000 lb. capacity means more shop advantages. Designed without obstructions to vehicle access, technicians have room to move increasing productivity. This heavy-duty lift is big on performance.
  • Redesigned, longer slip plates maximize a vehicle wheel base range. Two and four wheel alignments can be configured to service a wide range of vehicle combinations.
  • Single point release air-locks save valuable working time by releasing all four spring loaded column locks with the push of a single lever.
  • The heavy-duty hydraulic cylinder and lift mechanism are located underneath the runway, eliminating damaging vehicle obstructions and prolonging the hydraulic system's lifespan.
  • Rotary's patented dual function Sentinal locking system
  • 9,000 lb. capacity rolling jacks
  • Stainless steel radius gauges
  • Rear slip plates
  • Internal airline kit
  • Protective strips on ramp ends reduce noise and eliminate floor gouging
  • Front wheel stops

Warranty

One year



Product Specification

Inside of Columns122"
Between Columns212"
Height of Columns6' 5 3/4"
Width of Runways22"
Height of Runways7 1/2"
Width Between Runways (Minimum / Maximum)43" - 46"
Lift Capacity18,000 lbs.
Motor2 HP
Voltage Single Phase*208v-230v
Time of Full Rise80 seconds
Minimum Bay Size13’ x 27’
Max. Wheelbase194"
Maximum Two-Wheel Alignment177"
Four-Wheel Alignment63" - 162"
Rise / Floor to top of runway70"
Length Overall274"
Width Overall 137 11/16"

. .
