Item Detail

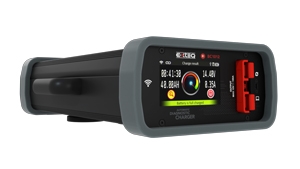

BC1012 12V/100A Diagnostic Charger/ Maintainer
Item Number: XTQEXBC1012-001-G
Supplier: E-XTEQ LLC
Price:   $1,692.22* *

* log in for dealer pricing.
Direct from 3rd Party Supplier
Add To Cart


NOTE: Delivery of the BC1012 units are expected to be delayed until August 2024. If available, your DCBS unit can serve as a charger/maintainer in place of the BC1012.

Description

12V/100A charge and quick diagnostic solution for 12V Lead, AGM, GEL, Li-Ion & EFB batteries:

  • Showroom-Maintaining Mode
  • Charging and Maintaining
  • Power Supply Mode ECU Reflash

Features

  • Performs IR, CCA and Charge Acceptance tests
  • User friendly interface with Touchscreen LED
  • Cloud based user interface (OPTIMUS/ARGOS) for data collection and tool updates
  • Engine start auto detection
  • Self protected reverse polarity indicator

Includes

  • BC1012 12V/100A Diagnostic Charger/ Maintainer (with QuickStart Guide)
  • 5m Power cord
  • Software Update Cable
  • 3.5m Charging Cable with Clamps
  • Anti-Scratch Rubber Coated Mounting Magnets
  • Braided Steel Anti-Theft/Safety Cable

Warranty

One (1) year



Product Specification

User Interface4.3’’ Touchscreen Color Display (128 x 64 px); Status LED for battery results; Buzzer Alarm for battery failure
HousingAluminum body with metal handle, Anti-Scratch Mounting Magnets with shock proof silicone shell; Braided steel cable for anti-theft
Temperature - Usage-15 to +40 C (5 F - 122 F)
Temperature - Storage-30 C to +60 C (-22 F - 140 F)
Humidity20 to 80% non condensing
Noise Level65 dB at 100A N/A
ConnectivityUSB ports for software updates RS232 port for accessories
Output15.1 V for normal charge & 13.5 V for floating mode (automatic switching) and power supply. V
INput90 - 264 VAC 47/63 Hz (for worldwide networks)
Accuracy1% on voltage (15V for ±150 mV), 1% on current (100A for 1A)
Dimensions17.3" x 4.7" c 13.5" (includes handle)
Weight21.2 lbs. (30.8 lbs. including clamps)

. .
